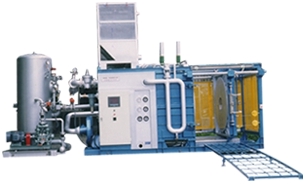

Full Automatic Vacuum Round Block Molding Machine |
|
 |
Design
- Chamber made of steel sections and tubular steel (Mild steel)
- Frame Inside made of unhardened aluminium alloy
- Rods made of high tensile steel (hard chromium plated) with self-lubricating sintered phosphor bronze sleeves
- Air cylinders for moving frame with mould by manually adjustable proximity sensor.
- Ejector cylinders connected to chamber
- Hopper (6300L capacity) with 3 plug-in connections mounted on framework
- Filling block with quick plug in connectors for 3 filling injectors
|
 |
- Max. chamber dimensions : 1530 X 1510 X 1020
- Mold clamping area : 1700 X 1700
- Cycle time (depend on condition of dry-steam and raw material used) : 180 ~ 300S
- Steam consumption per cycle : 100 ~ 120kg/cycle
- Max.compressed air requirement (p=5bar/min) : 2.6 /min
- Machine dimensions
. length : 6,860 mm
. width : 2,200 mm
. height(without hopper) : 2,260 mm
. height(with hopper) : 4,150 mm
. weight : 8,600 kg
|
|
| DKB - 1500RVS |
|
